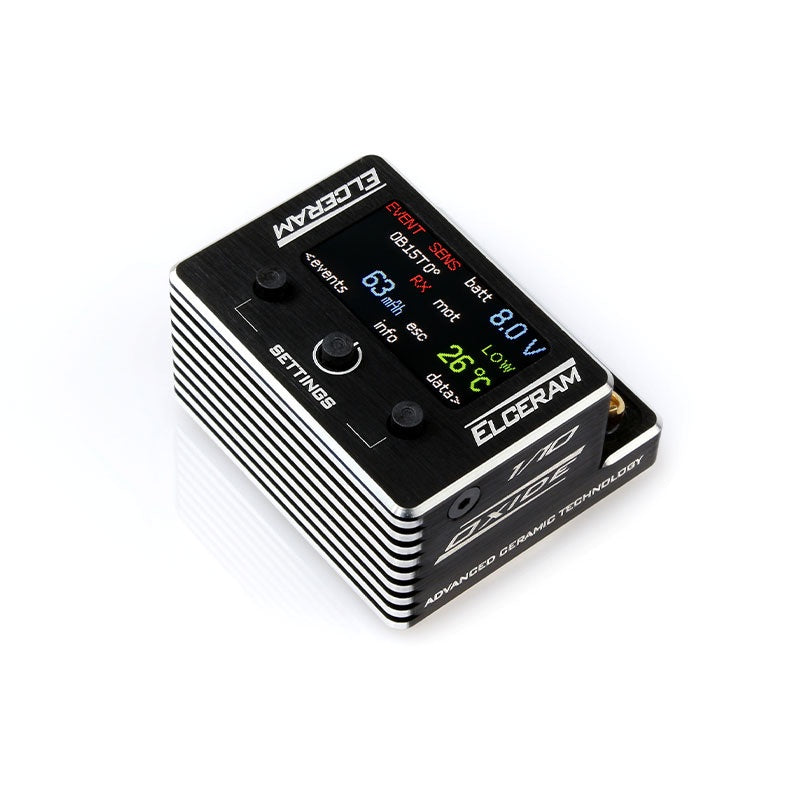

ELCERAM OXIDE G2 1/10 Competition Brushless ESC - ELC021

The ELCERAM OXIDE 1/10 G2 is a state-of-the-art, sensor-controlled brushless controller for on-road, off-road, stock, open stock, modified and drift.
With its innovative aluminum oxide ceramic cooling technology , built-in TFT color display and advanced telemetry, it sets a new standard in the 1:10 competition.

Thanks to direct MOSFET cooling, extremely low internal resistance and intelligent protection functions, the OXIDE G2 is ideal for high-performance motors from 6T upwards.

Key features

📟 Integrated TFT color display – no programmer required

• Matte 160×80 TFT display integrated directly into the controller
• Set all parameters without additional equipment
• Intuitive 3-button operation
• Immediate control of all race-relevant data

Simple. Fast. Precise.

⚡ Real-time monitoring and race telemetry

• Live monitoring: battery voltage, ESC temperature, motor temperature
• Unique: Real-time monitoring of battery current and discharge
• Pre-start diagnostics: sensor, motor condition, BEC voltage, battery, and much more.
• Error detection at:
  • Engine defect
  • Mechanical blockage
  • Sensor problems
  • Battery or BEC errors

📊 Data recording

• Recording of temperature curves
• Load profile & current flow
• Event logs & histograms
• Data remains stored even after switching off the power.

❄ Aluminum oxide ceramic heat sink – extremely efficient

• High-performance ceramic coolers with enormous thermal conductivity
• MOSFETs are cooled directly – without additional layers.
• Large layers of silver and copper ensure extremely low internal resistance.
• Additional aluminum heat sinks + connection for intelligent fan

🔧 Extensive setting options

• Gas and brake curves
• Boost & Turbo Timing
• Hall angle
• Zero Timing (Blinky Mode)
• Maintenance interval reminders
• Super simple RX setup

🛠️ Compact & Race Ready

• Very small design
• 70% of the weight in the lower area – ideal center of gravity
• Easy installation with included double-sided tape
• Replaceable housing cover (display/buttons)

Technical data

• Area of ​​use: 1/10 On-road & Off-road, Stock, Modified, Drift
• Motor: Brushless Sensored from 6T
• Waterproof: No
• Polarity protection: Yes
• Continuous/peak current: 160 A / 1500 A
• Input: 2S LiPo
• BEC: 6.0-7.4V adjustable, 6A/12A peak
• Size: 34 × 36.5 × 20 mm
• Weight: 50 g (without cable)
• BEC cable: 180 mm (gray = minus)
• External capacitors: required, included

Scope of delivery

• ELCERAM OXIDE 1/10 G2 ESC
• External Capacitors
• Double-sided mounting tape
• Instructions
