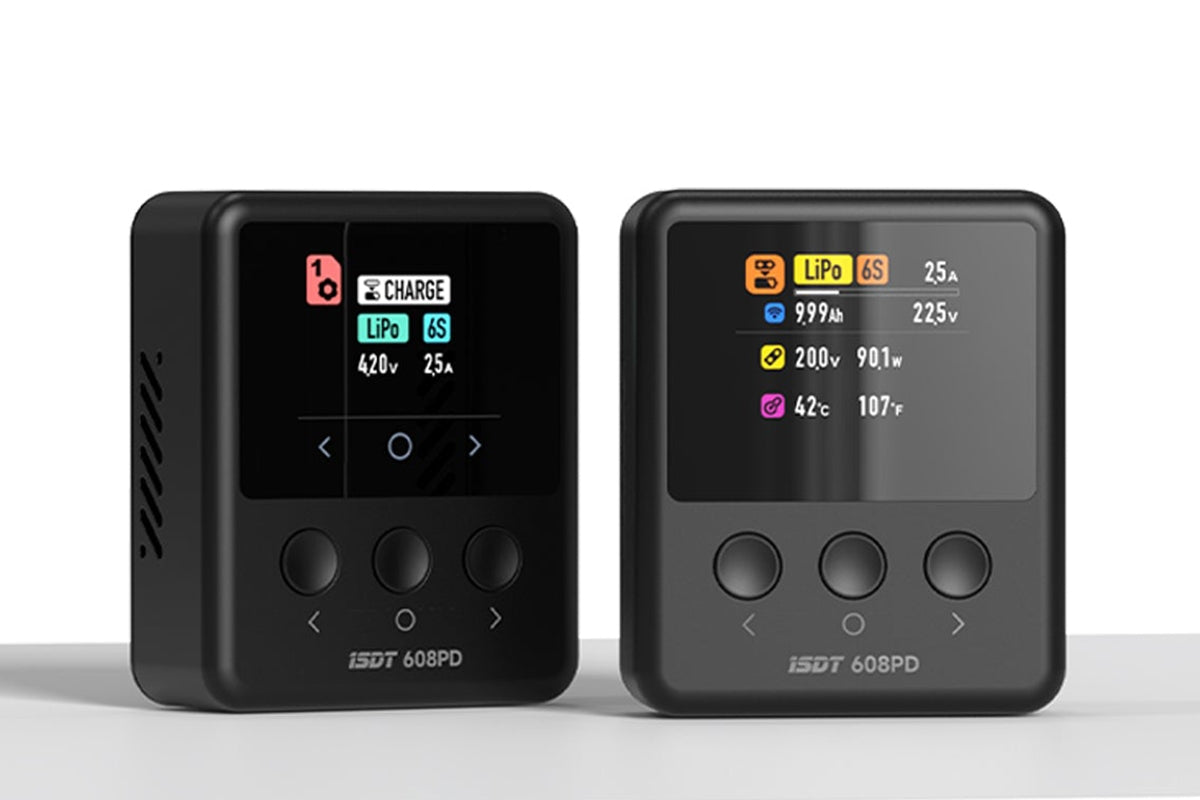

ISDT 608PD 240W – Miniature Charger

The ISDT 608PD 240W miniature charger is a powerful, intelligent charger powered by a car battery, a stabilized power supply, or USB-C power supply. It offers very simple and straightforward operation. The 608PD can charge common cell types (NiMH, Li-Po, LiHV/ULiHV, LiFe, and Lead) . It also features a built-in 6-channel balancer that ensures safe charging of lithium batteries. Equipped with a color LCD display and three programming buttons, it enables convenient, clear parameter setting, control, and monitoring of the charging process.

Special features

• Program for new “high voltage” lithium batteries: LiHV up to 4.35 V and ULiHV up to 4.45 V final voltage (adjustable in the range 4.25–4.50 V).
• Adjustable final charging voltage for lithium batteries (gentle charging for pilots or deliberately higher voltage for car enthusiasts) .
• Adjustable final charge voltage for lead-acid batteries (2.00–2.45 V/cell) – suitable for all types of lead-acid batteries.

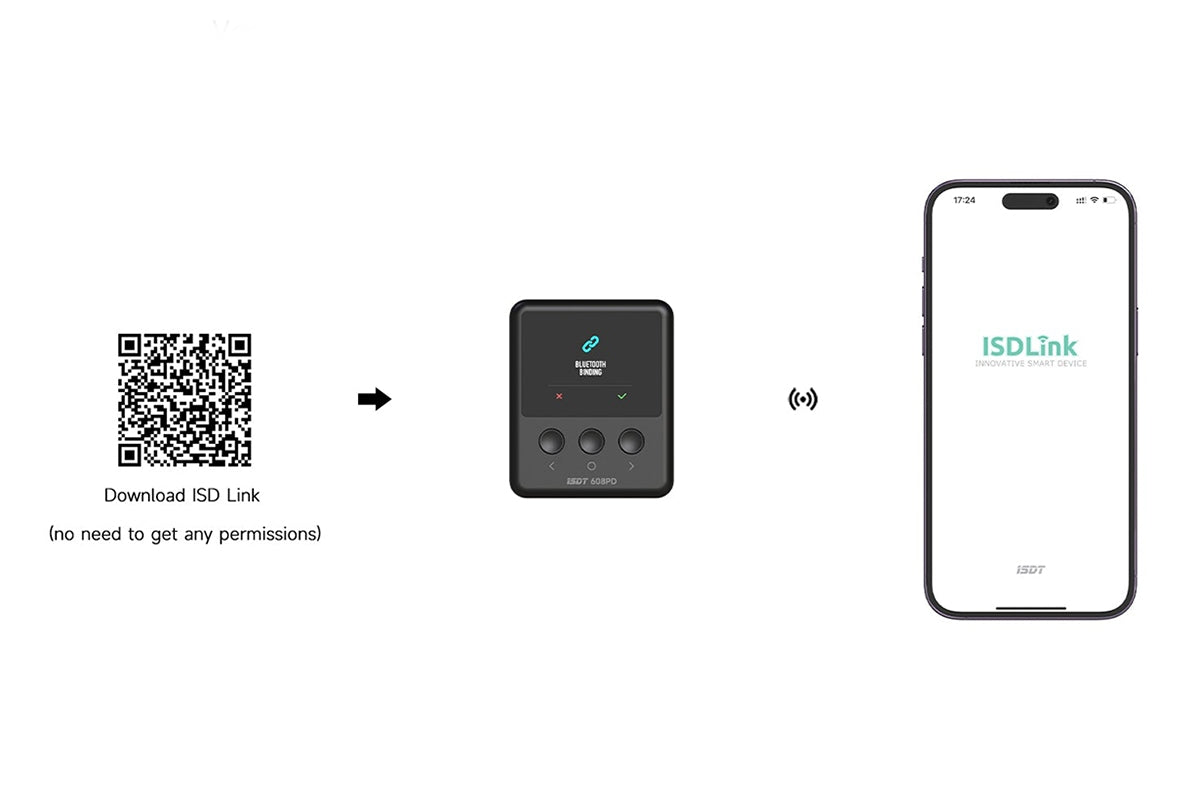

• Bluetooth connectivity: Charging can be set, started and monitored in the ISD Link app (Android and iOS).

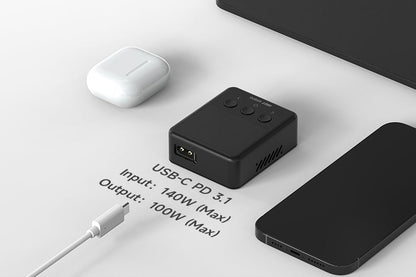

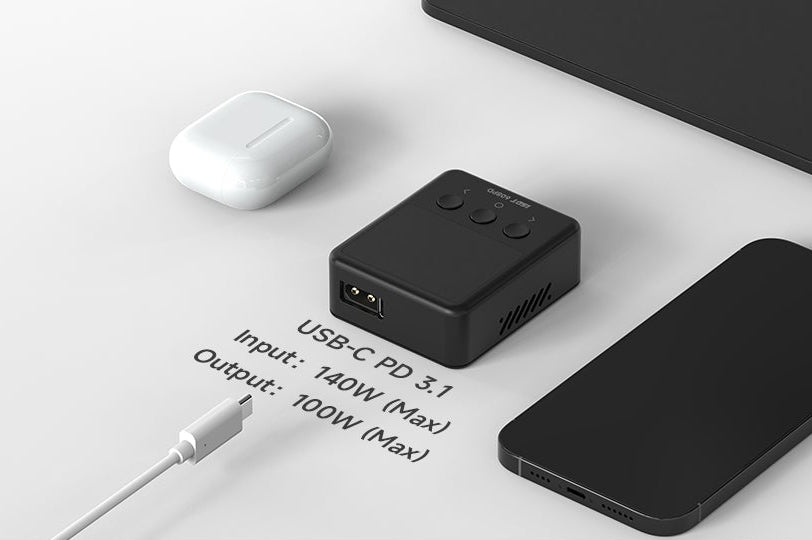

• Can be used as a USB-C/PD2.0/PD3.0/PD3.1 charger for smartphones, tablets and similar devices.

Overview: Basic functions & parameters

• DC power supply 5-30 V via XT60 or USB-C (5-28 V).
• Charge 1-16 NiMH cells, 1-6 Li-Po/Li-Fe/LiHV cells or 2-24V lead batteries.
• Adjustable charging current 0.5–10.0 A (max. 240 W). Note: A supply voltage of at least 24 V is required for full performance.
• Charging termination using Delta Peak automatic for NiMH batteries.
• Lithium and lead batteries are charged using the constant current/constant voltage (CC/CV) method.
• Adjustable sensitivity of delta peak detection for NiMH batteries.
• Adjustable charging voltage for lithium and lead batteries.
• Use as a USB-C/PD charger for mobile devices when powered by a 5-30 V model battery pack (with adjustable voltage limit to prevent deep discharge).

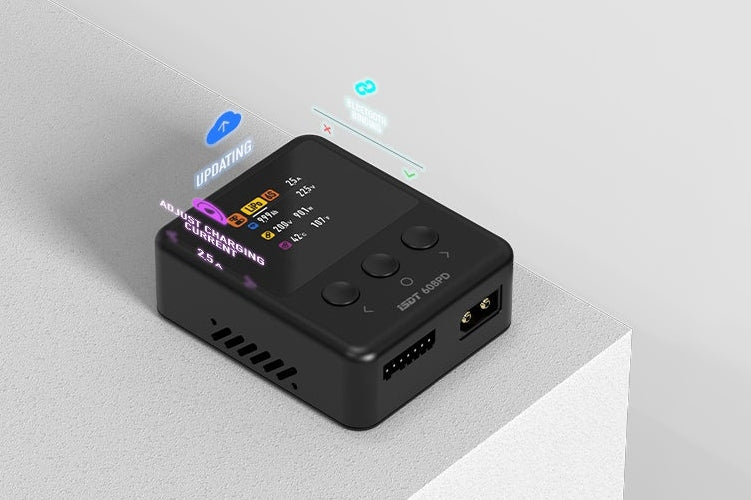

• Easy firmware update via USB-C port.

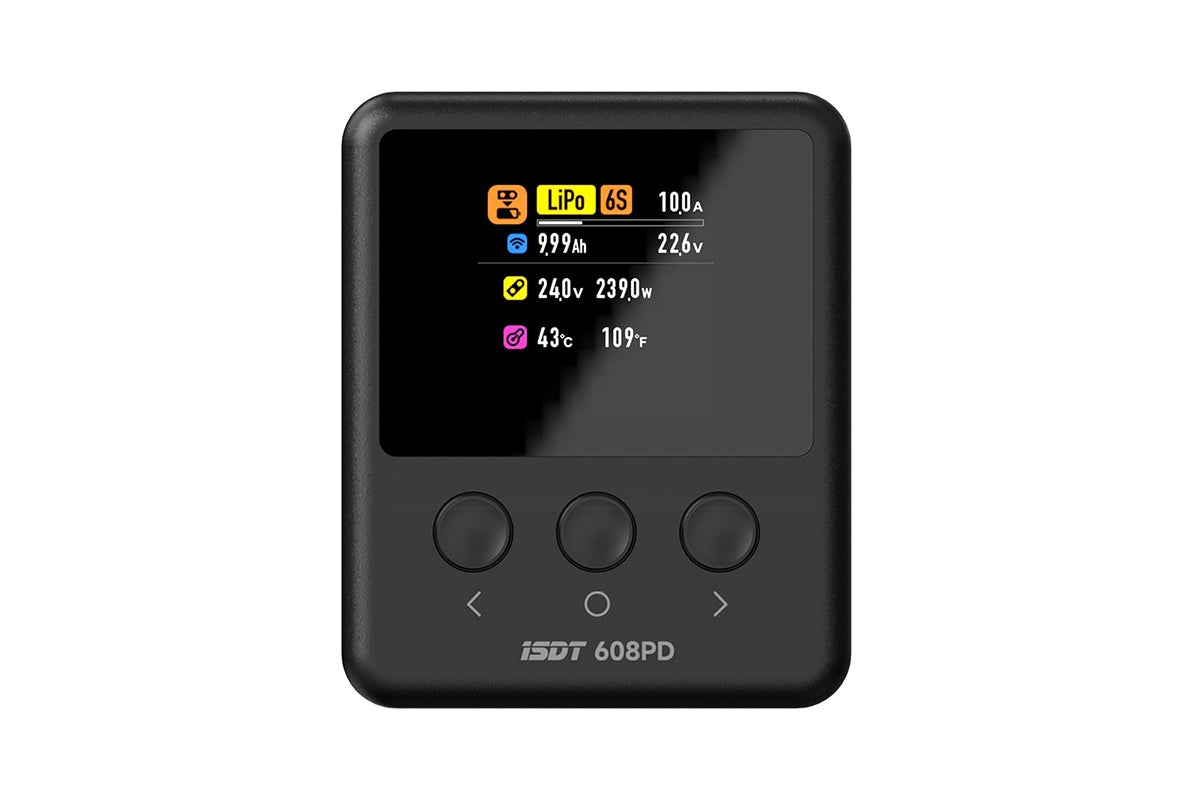

• Backlit color LCD with clear menu and parameter display during charging.
• Three programming buttons for simple and clear operation.
• Extensive safety warnings: incorrect battery type/voltage, drop in supply voltage, and much more

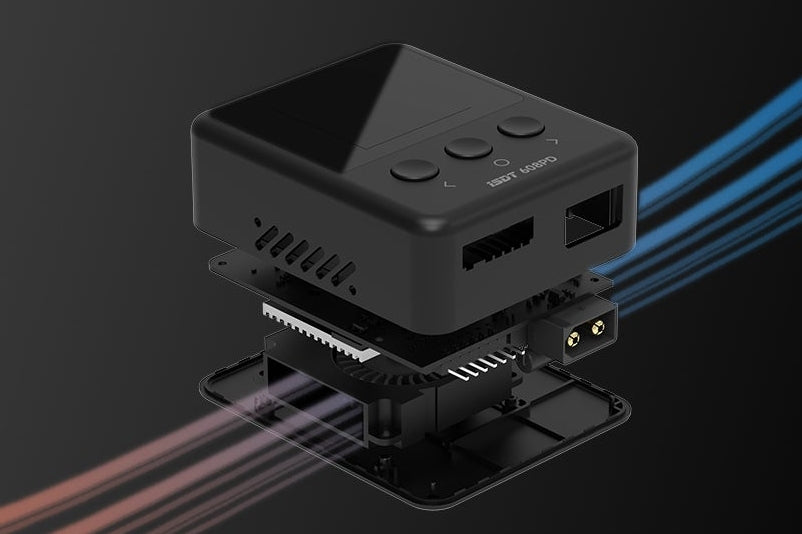

• Fan for forced cooling.
• Compact plastic housing, miniature dimensions.

Connections & Compatibility

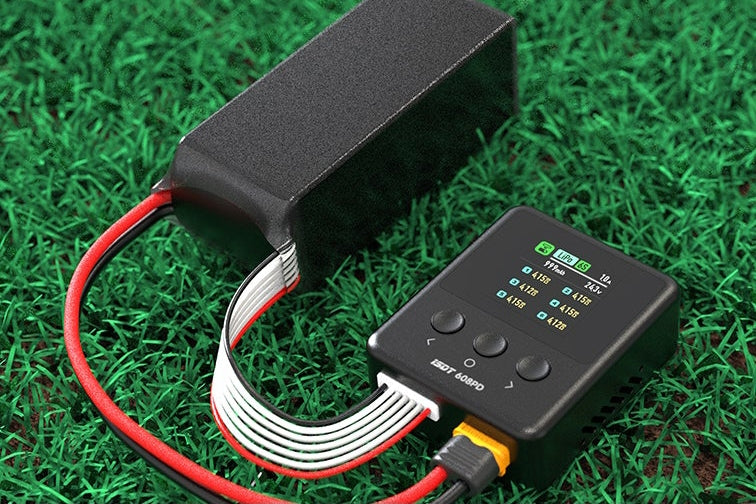

The charger features an XT60 output socket and a universal socket for JST-XH balance connectors . This allows for direct connection of battery power cables and JST-XH balance connectors from 2-6S sets. Using sets with XT60 and JST-XH connectors eliminates the need for additional charging cables and adapters. Standard adapters from Sky RC or KAVAN can be used for balance connectors from other systems.
