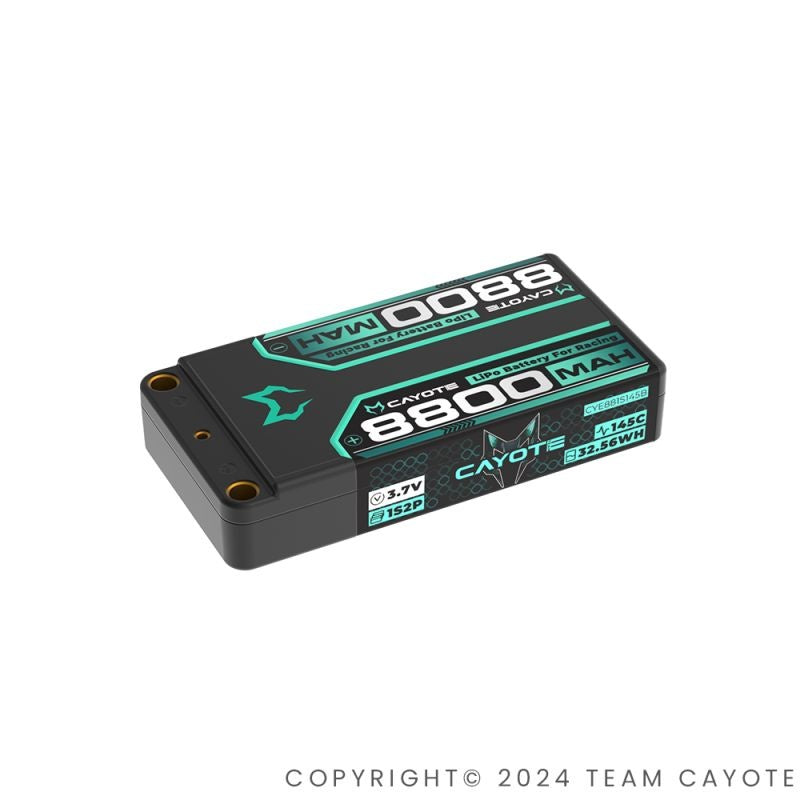

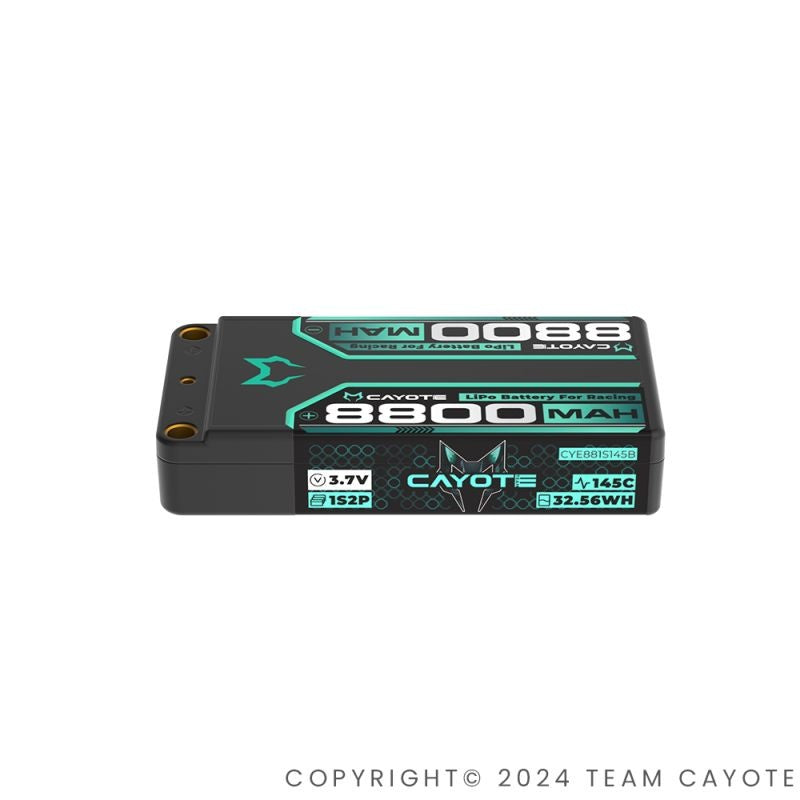

CAYOTE Racing 8800mAh 1S2P Shorty LiPo battery 3.7V 145C 162g - 881S145

CAYOTE Racing 1S Shorty LiPo battery with a high capacity of 8800mAh at 3.7V and 145C.

Technical data:

• Capacity: 8800mAh
• Weight: 162g (+- 5%)
• Battery height: 18.3mm
• C-Rate: 145C
• Watt hours: 32.56
• Dimensions (L x W): 92.8 x 46.5mm
• Connector: 5mm sockets

Information about LiPo batteries

LiPo stands for lithium polymer and is considered the battery of the future, offering longer runtimes and higher performance. Its high number of possible charging cycles is also a plus. Depending on the manufacturer, the battery life is stated to be between 300 and 600 charging cycles. Furthermore, LiPo batteries have no memory effect, meaning they largely retain their capacity throughout their entire lifespan, with only minor losses of around 20%. However, this lifespan is shortened if they are not stored at a storage voltage of 3.8V. Therefore, the battery should be charged to this voltage after each use.

Charging LiPo batteries

When you purchase a LiPo battery, it must first be charged. Make sure the charger is compatible with the LiPo battery. This information can usually be found on the charger, the packaging, or in the manual. Once you have a compatible charger, you'll need to know the correct settings for charging the battery.

It's important to understand what the specifications on the battery mean: A LiPo battery consists of at least one cell, typically rated at 3.7 volts. The "S" value indicates the number of cells. A 2S battery, for example, has 7.4 volts (or 7.6 volts for a high-voltage battery). The current rating in amperes indicates how much current the battery can deliver.

What is the C-value

The "C" rating is an important factor for charging and discharging. It indicates how much current can be drawn from the battery for a short period of time. This is calculated by multiplying the amperage rating by the "C" rating. Simply put, a 6000mAh battery with a 50C rating can deliver up to 300 A at the output. The higher the C rating, the more punch the battery offers when riding on the track!

Security – an important issue

LiPo batteries require special safety precautions. Many people have heard of exploding batteries. Common causes are overcharging or mechanical damage. To minimize the risk, always use a LiPo charger with the correct settings. It is also recommended to charge the battery in a LiPo safe bag and store it in it at the correct storage voltage.

How do I store LiPo batteries?

Proper storage of LiPo batteries is crucial to extending their lifespan. Storing them either empty or fully charged for more than two weeks can severely affect their performance and lifespan. If they are not going to be used for an extended period (more than a week), use a programmable charger to bring the battery to storage voltage in storage charge mode. If such a device is not available, charge the battery for approximately half the time it would normally take to fully charge.
